Basic VPLS Configuration on Nokia Service Routers
21
Th3
Th3

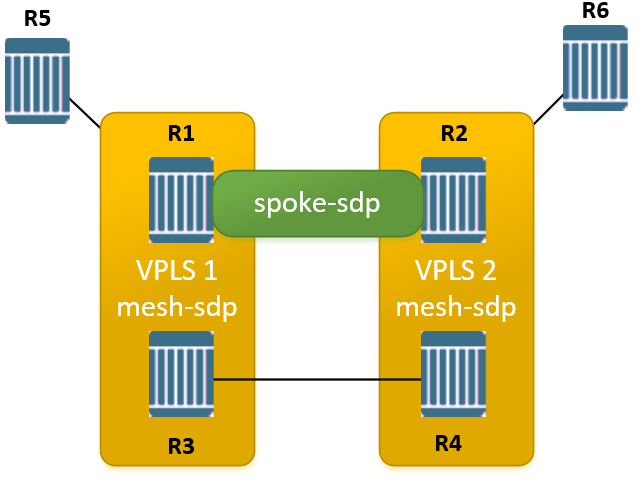

In this lab: Basic VPLS Configuration on Nokia Service Routers, you will configure VPLS 1 on routers R1 and R3, with a SAP towards router R5 on R1. You will also configure VPLS 2 on routers R2 and R4, with a SAP towards router R6 on R2. The two VPLS services will then be joined using a spoke-SDP. A hierarchy of VPLS (H-VPLS) connections removes the requirement for full mesh connectivity between all routers by using a mix of mesh and spoke SDPs.
Mục lục

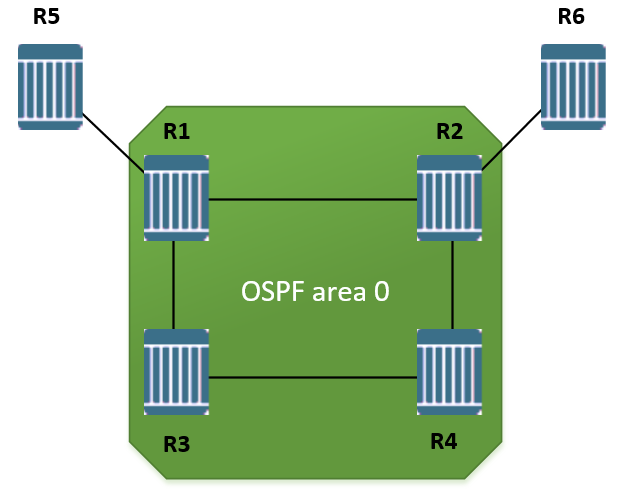

Basic configuration and IP planning
This article will skip the basic configuration like: IP, OSPF, MPLS, TLDP and RSVP. All configurations you can download at the link below the article.
The system address is 10.10.10.X/32, with X as the router number.
| Router | System IP |
| R1 | 10.10.10.1/32 |
| R2 | 10.10.10.2/32 |
| R3 | 10.10.10.3/32 |
| R4 | 10.10.10.4/32 |
| R5 | 10.10.10.5/32 |
| R6 | 10.10.10.6/32 |

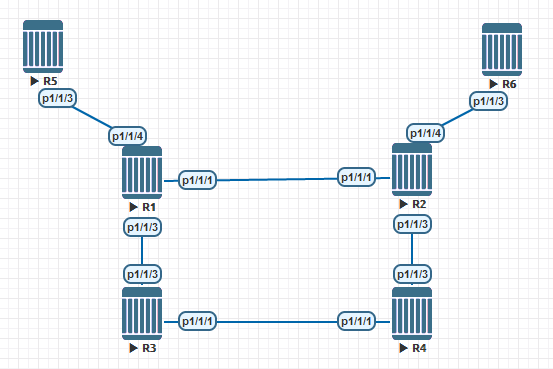

The IP address for all interfaces is numbered 10.X.Y.R/27, where
- X is the lower router #,
- Y is the higher router #,
- R is the local router #.
- R5: 192.168.0.1/27
- R6: 192.168.0.2/27
Create an MPLS SDP from router R1 to router R3 using the configured LSP toR3.
#R1
/configure service
sdp 3 mpls create
far-end 10.10.10.3
lsp "toR3"
no shutdown
exitCreate an MPLS SDP from router R3 to router R1 using the configured LSP toR1.
#R3
/configure service
sdp 1 mpls create
far-end 10.10.10.1
lsp "toR1"
no shutdown
exitCreate VPLS 1 between routers R1 and R3.
#R1
/configure service
vpls 1 customer 1 create
mesh-sdp 3:1 create
no shutdown
exit
no shutdown
exit
#R3
/configure service
vpls 1 customer 1 create
mesh-sdp 1:1 create
no shutdown
exit
no shutdown
exitOn router R1, add a dot1q SAP towards router R5. Use VLAN 1 on port 1/1/4.
#R1
/configure port 1/1/4
ethernet
mode access
encap-type dot1q
mtu 9212
exit
no shutdown
/configure service vpls 1 sap 1/1/4:0 createCreate an MPLS SDP from router R2 to router R4 using the configured LSP toR4.
/configure service
sdp 2 mpls create
far-end 10.10.10.2
lsp "toR2"
no shutdown
exitCreate an MPLS SDP from router R4 to router R2 using the configured LSP toR2.
/configure service
sdp 4 mpls create
far-end 10.10.10.4
lsp "toR4"
no shutdown
exitCreate VPLS 2 between routers R2 and R4.
#R2
/configure service
vpls 2 customer 1 create
mesh-sdp 4:2 create
no shutdown
exit
no shutdown
exit
#R4
/configure service
vpls 2 customer 1 create
mesh-sdp 2:2 create
no shutdown
exit
no shutdown
exitOn router R2, add a dot1q SAP towards router R6. Use VLAN 2 on port 1/1/4.
#R2
/configure port 1/1/4
ethernet
mode access
encap-type dot1q
mtu 9212
exit
no shutdown
/configure service vpls 2 sap 1/1/4:0 createCreate an MPLS SDP from router R1 to router R2 using the configured LSP toR2.
/configure service
sdp 2 mpls create
far-end 10.10.10.2
lsp "toR2"
no shutdown
exitCreate an MPLS SDP from router R2 to router R1 using the configured LSP toR1.
/configure service
sdp 1 mpls create
far-end 10.10.10.1
lsp "toR1"
no shutdown
exitOn router R1, connect VPLS 1 to VPLS 2 on router R2 using spoke-SDPs.
#R1
/configure service vpls 1 spoke-sdp 2:1 create
#R2
/configure service vpls 2 spoke-sdp 1:1 createVerification VPLS Configuration on Nokia Service Routers
Verify that all configured SDPs are operationally up.
A:R1# show service sdp
============================================================================
Services: Service Destination Points
============================================================================
SdpId AdmMTU OprMTU Far End Adm Opr Del LSP Sig
----------------------------------------------------------------------------
2 0 9190 10.10.10.2 Up Up MPLS R TLDP
3 0 9190 10.10.10.3 Up Up MPLS R TLDP
----------------------------------------------------------------------------
Number of SDPs : 2
----------------------------------------------------------------------------
Legend: R = RSVP, L = LDP, B = BGP, M = MPLS-TP, n/a = Not Applicable
I = SR-ISIS, O = SR-OSPF, T = SR-TE, F = FPE
============================================================================Verify that all components of VPLS 1 and VPLS 2 are operationally up.
A:R1# show service id 1 base
===============================================================================
Service Basic Information
===============================================================================
Service Id : 1 Vpn Id : 0
Service Type : VPLS
MACSec enabled : no
Name : 1
Description : (Not Specified)
Customer Id : 1 Creation Origin : manual
Last Status Change: 08/02/2021 00:02:13
Last Mgmt Change : 08/02/2021 00:01:49
Etree Mode : Disabled
Admin State : Up Oper State : Up
MTU : 1514
SAP Count : 1 SDP Bind Count : 2
Snd Flush on Fail : Disabled Host Conn Verify : Disabled
SHCV pol IPv4 : None
Propagate MacFlush: Disabled Per Svc Hashing : Disabled
Allow IP Intf Bind: Disabled
Fwd-IPv4-Mcast-To*: Disabled Fwd-IPv6-Mcast-To*: Disabled
Mcast IPv6 scope : mac-based
Def. Gateway IP : None
Def. Gateway MAC : None
Temp Flood Time : Disabled Temp Flood : Inactive
Temp Flood Chg Cnt: 0
SPI load-balance : Disabled
TEID load-balance : Disabled
Src Tep IP : N/A
Vxlan ECMP : Disabled
MPLS ECMP : Disabled
VSD Domain : <none>
-------------------------------------------------------------------------------
Service Access & Destination Points
-------------------------------------------------------------------------------
Identifier Type AdmMTU OprMTU Adm Opr
-------------------------------------------------------------------------------
sap:1/1/4:0 q-tag 9212 9212 Up Up
sdp:2:1 S(10.10.10.2) Spok 0 9190 Up Up
sdp:3:1 M(10.10.10.3) Mesh 0 9190 Up Up
===============================================================================
* indicates that the corresponding row element may have been truncated.A:R2# show service id 2 base
===============================================================================
Service Basic Information
===============================================================================
Service Id : 2 Vpn Id : 0
Service Type : VPLS
MACSec enabled : no
Name : 2
Description : (Not Specified)
Customer Id : 1 Creation Origin : manual
Last Status Change: 08/02/2021 00:02:14
Last Mgmt Change : 08/02/2021 00:01:49
Etree Mode : Disabled
Admin State : Up Oper State : Up
MTU : 1514
SAP Count : 1 SDP Bind Count : 2
Snd Flush on Fail : Disabled Host Conn Verify : Disabled
SHCV pol IPv4 : None
Propagate MacFlush: Disabled Per Svc Hashing : Disabled
Allow IP Intf Bind: Disabled
Fwd-IPv4-Mcast-To*: Disabled Fwd-IPv6-Mcast-To*: Disabled
Mcast IPv6 scope : mac-based
Def. Gateway IP : None
Def. Gateway MAC : None
Temp Flood Time : Disabled Temp Flood : Inactive
Temp Flood Chg Cnt: 0
SPI load-balance : Disabled
TEID load-balance : Disabled
Src Tep IP : N/A
Vxlan ECMP : Disabled
MPLS ECMP : Disabled
VSD Domain : <none>
-------------------------------------------------------------------------------
Service Access & Destination Points
-------------------------------------------------------------------------------
Identifier Type AdmMTU OprMTU Adm Opr
-------------------------------------------------------------------------------
sap:1/1/4:0 q-tag 9212 9212 Up Up
sdp:1:1 S(10.10.10.1) Spok 0 9190 Up Up
sdp:4:2 M(10.10.10.4) Mesh 0 9190 Up Up
===============================================================================
* indicates that the corresponding row element may have been truncated.Ping 192.168.0.2 from router R5. Ping 192.168.0.1 from router R6. The pings must be successful.
A:R5# ping 192.168.0.2
PING 192.168.0.2 56 data bytes
64 bytes from 192.168.0.2: icmp_seq=1 ttl=64 time=19.4ms.
64 bytes from 192.168.0.2: icmp_seq=2 ttl=64 time=58.6ms.
64 bytes from 192.168.0.2: icmp_seq=3 ttl=64 time=14.0ms.
64 bytes from 192.168.0.2: icmp_seq=4 ttl=64 time=12.9ms.
64 bytes from 192.168.0.2: icmp_seq=5 ttl=64 time=2.05ms.
---- 192.168.0.2 PING Statistics ----
5 packets transmitted, 5 packets received, 0.00% packet loss
round-trip min = 2.05ms, avg = 21.4ms, max = 58.6ms, stddev = 19.4ms
A:R6# ping 192.168.0.1
PING 192.168.0.1 56 data bytes
64 bytes from 192.168.0.1: icmp_seq=1 ttl=64 time=14.1ms.
64 bytes from 192.168.0.1: icmp_seq=2 ttl=64 time=2.29ms.
64 bytes from 192.168.0.1: icmp_seq=3 ttl=64 time=10.7ms.
64 bytes from 192.168.0.1: icmp_seq=4 ttl=64 time=2.94ms.
64 bytes from 192.168.0.1: icmp_seq=5 ttl=64 time=2.04ms.
---- 192.168.0.1 PING Statistics ----
5 packets transmitted, 5 packets received, 0.00% packet loss
round-trip min = 2.04ms, avg = 6.42ms, max = 14.1ms, stddev = 5.02msCheck MAC addresses are learned
A:R1# show service id 1 fdb detail
===============================================================================
Forwarding Database, Service 1
===============================================================================
ServId MAC Source-Identifier Type Last Change
Transport:Tnl-Id Age
-------------------------------------------------------------------------------
1 50:00:00:05:00:03 sap:1/1/4:0 L/29 08/02/21 03:06:37
1 50:00:00:06:00:03 sdp:2:1 L/29 08/02/21 03:06:37
-------------------------------------------------------------------------------
No. of MAC Entries: 2
-------------------------------------------------------------------------------
Legend: L=Learned O=Oam P=Protected-MAC C=Conditional S=Static Lf=Leaf
===============================================================================A:R2# show service id 2 fdb detail
===============================================================================
Forwarding Database, Service 2
===============================================================================
ServId MAC Source-Identifier Type Last Change
Transport:Tnl-Id Age
-------------------------------------------------------------------------------
2 50:00:00:05:00:03 sdp:1:1 L/30 08/02/21 03:06:38
2 50:00:00:06:00:03 sap:1/1/4:0 L/30 08/02/21 03:06:38
-------------------------------------------------------------------------------
No. of MAC Entries: 2
-------------------------------------------------------------------------------
Legend: L=Learned O=Oam P=Protected-MAC C=Conditional S=Static Lf=Leaf
===============================================================================Download full config and unl file of lab Basic VPLS Configuration on Nokia Service Routers
If you have any questions or need to discuss, do not hesitate to comment below.
